Well A-1-1

Name

Client

Block

Area

Platform

Type

Operasional Status

Description

Status

Created By

Created At

Attached Device
No	Name	Type	Manufacture	Size	Pressure
1
2
3

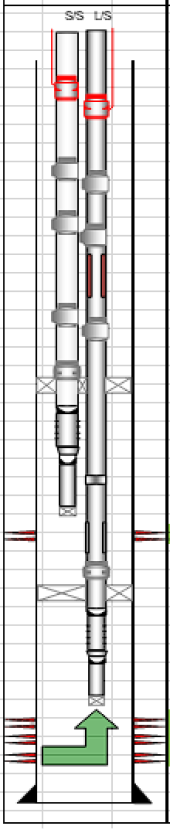

Well Diagram
No	Name	Date
1	Block A Onshore - Wll A-1-1	12 Jul 2023

Well Trajectory
No	Name	Date
1	Block A Onshore - Wll A-1-1	12 Jul 2023

Attached Device
No	M.D	incl.	Dir.	Sect.	T.V.D.	S.V.D.	X	Y
1	0	0	0	0	0	0	0X	0Y
2	400	0	0	0	400	-400	0X	0Y
3	435	0.5	3	0.15	435	-435	0X	0Y
4	526	4.5	8	4.09	526	-526	1X	4Y
5	587	5	3	9.11	587	-587	1X	9Y
6	648	5	360	14.42	647	-647	1X	14Y
7	711	6.75	358	20.87	710	-710	1X	21Y
8	774	9	1	29.5	773	-773	1X	29Y
9	837	11.75	360	40.48	843	-843	1X	41Y
10	899	13.5	358	53.49	895	-895	1X	54Y

Attached Device
Diagram	Accesories	Depth		Notes
Diagram	Accesories	Top	Bototm	Notes
	2-7/8" CS K-Type SCSSV	272		SS
	2-7/8" WB_T-4 SCSSV	287		LS

	2-7/8" CAMCO "KBMO" GLM	1248		SS Dummy
	2-7/8" CAMCO "KBMO" GLM LS	1282		LS Dummy
	2-7/8” CAMCO "KBMO" GLM	2391		SS Dummy
	2-7/8" concentrix 2" + 1.7" x 10" spacer	2431		LS GLV 0. 1875 / 580#
	top of pack off	2544
			68 ft	LS re-set packer in Nov’14
	bottom of pack off	2612
	2-7/8” CAMCO “KBMO” GLM	3508		SS SO 0.25”
	2-7/8” CAMCO “KBMO” GLM LS	3546		LS SO 0.25”
	2-7/8” CAMCO WB-1-D Sliding Sleeve	5037		SS Close
	9-5/8” x 3-1/2 x 3-1/2” CAMCO HSD-1-SP (3253’TVD)	5037
	2-7/8” CAMCO D Landing Nipple	5053		SS 2.25” GC clear up to D-Nipple (Sep’15)
	2-7/8” x 6’ Perforated Pup Joint
	2-7/8” x 2-3/8” Cross over
	2-3/8” CAMCO D Landing Nipple	5061
	2-3/8” CAMCO RHR Safety Joint	5062
	2-3/8” x 10 ‘ Pup Joint
	Cross Pin Collar	5071
	B-34A (3587 - 3585’ TVD); 7ft	5120	5130	LS CLOSE
	2-7/8” CAMCO WB-1-D Sliding Sleeve	5387
